Aerotech 的 AXR 集成兩軸旋轉組件提供高速加工能力用于復雜的三維幾何工件。精確對齊系統允許在一個半球表面精確定位。多種框架尺寸，直驅或齒輪驅動選項提供了廣泛的承載能力。
● 多種配置，支持不同的負載和精度的要求
● 集成旋轉接頭用于真空或空氣激活工具
● 高速偏轉軸提供轉速高達1000 rpm
● 高負載的齒輪傳動或高速直驅傾斜軸配置
● 可選密封可以防止空氣中的微粒進入系統
● 剎車可用于在無動力狀態下限制轉臺的運動
直驅偏轉軸

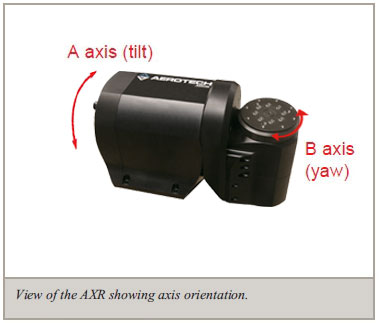

All AXR series rotary combinations feature a direct-drive yaw (B) axis. Direct-drive motors exhibit significantly higher throughput and maintenance-free operation when compared to gear- and screw-driven technology. With peak rotation speeds of up to 1000 rpm, the AXR is capable of supporting high-speed machining processes. A high-resolution encoder enables the axis to run at extremely slow speeds while maintaining excellent velocity regulation and positioning accuracy.
高容量傾斜軸
The AXR has both direct-drive and gear-driven tilt (A) axis configurations to meet the performance requirements of your specific application. The direct-drive version provides the highest possible operating speed and accuracy for demanding applications. A modular counterbalance system and different yaw mounting heights are available to balance offset loads. The tilt axis can be equipped with a brake to hold axis position when power is removed. For large load applications, the gear-drive units provide significantly higher continuous torque output while the drive mechanism limits motion in the power-off state. The precision anti-backlash gearing enables this higher torque output while still maintaining excellent accuracy and repeatability performance.
物料搬運
The AXR comes standard with an integral rotary union that provides a single pneumatic control signal to the yaw-axis tabletop for customer supplied air- or vacuum-actuated tooling. The AXR can also be outfitted with a 3-jaw manual chuck for maximum part-holding flexibility.
可擴展的產品解決方案
With both direct-drive and gear-driven platforms, various yaw table locations, a scalable counterbalance, standard pneumatic feed-through, and an optional 3-jaw chuck, the AXR can be configured to meet the requirements of most two-axis rotary assemblies.
